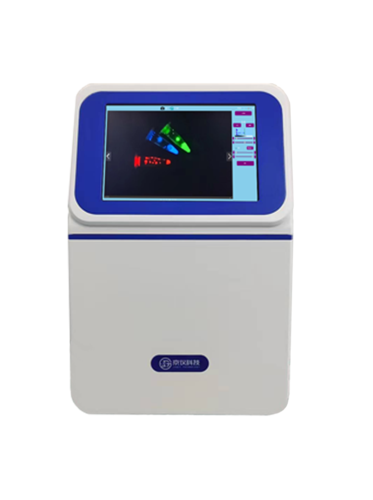

●Touch system
13.3 inch capacitive touch system, 4K
high-definition display, I5 processor, 8G memory, 512G SSD
●Auto focus
Software autofocus, allowing for direct shooting of samples without manual adjustment
●Automatic exposure
One click automatic exposure, preview experimental results in advance, no need to repeatedly estimate exposure time, can continue shooting
Product features：
Automatic control High sensitivity camera
Fully automatic control, one click automatic detection for sample insertion BSI backlit camera with a photosensitive efficiency of up to 95%
To obtain the experimental results
Dye Database Image management
Equipped with a database of commonly used dyes, the fluorescence module The shooting software has builtin image management , which saves multiple allows for direct selection of dyes for shooting, supporting up to 5 channels experimental results and has functions such as import, export, batch deletion, for simultaneous shooting and has functions such as import, export, batch deletion, and image viewing
Main applications:
Mainly used for sample detection after various chemiluminescence exposures, such as ECL, ECL PLUS, Southern, CDP Star, CSPD, Northern and Western hybridization chemiluminescence. It can also be used for bioluminescence detection of cells or DNA labeled with luciferase genes. It can also achieve multi-channel fluorescence detection, such as CY2, CY3, CY5
Chemiluminescence imprinting imaging Fluorescence imprinting imaging
Biochip imaging Microporous plate imaging
Parameters：
| Model：GS-S600RGB Touch | Model：GS-S900RGB Touch |
| Basic parameters | Basic parameters |
| Camera: Research grade backlit cryogenic camera | Camera: Research grade backlit cryogenic camera |
Refrigeration temperature: Below ambient temperature of -68 ℃, dynamically and in real-time display of camera cooling temperature | Refrigeration temperature: Below ambient temperature of -68 ℃, dynamically and in real-time display of camera cooling temperature |
| Effective physical pixels: 9 million pixels, backlit camera | Effective physical pixels: 12 million pixels, backlit camera |
| Quantum efficiency: QE>95% | Quantum efficiency: QE>95% |
| Image depth : 16 bit （65536 Gray scale） | Image depth : 16 bit （65536 Gray scale） |
| Pixel size : 3.76um×3.76um | Pixel size : 4.63um×4.63um |
| Binning : 1×1，2×2，3×3，4×4，···8x8 | Binning : 1×1，2×2，3×3，4×4，···8x8 |
| dynamic range: ＞4.8OD | dynamic range: ＞4.8OD |
Electric lens: F: 0.95 automatic focus lens with computer automatic focus calibration function | Electric lens: F: 0.95 automatic focus lens with computer automatic focus calibration function |
| ECL sample stage: movable sample board | ECL sample stage: movable sample board |
| Auxiliary light source: double-sided LED white light | Auxiliary light source: double-sided LED white light |
| Touch system: 13.3 Touch System | Touch system: 13.3 Touch System |
| Filter wheel: fully automatic 5-position filter wheel | Filter wheel: fully automatic 5-position filter wheel |
| Excitation light source: red, green, blue LED fluorescence excitation | Excitation light source: red, green, blue LED fluorescence excitation |
| Receiving filter：BP699nm、BP605nm、BP535nm | Receiving filter：BP699nm、BP605nm、BP535nm |
Operating system: can be connected to an external desktop computer, can be used simultaneously with the built-in touch systemm, one click switching | Operating system: can be connected to an external desktop computer, can be used simultaneously with the built-in touch system, one click switching |
